Resolver for industry tiles. More...

#include <newgrf_industrytiles.h>

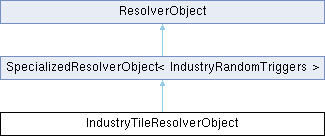

Inheritance diagram for IndustryTileResolverObject:

Public Member Functions
	IndustryTileResolverObject (IndustryGfx gfx, TileIndex tile, Industry *indus, CallbackID callback=CBID_NO_CALLBACK, uint32_t callback_param1=0, uint32_t callback_param2=0)
	Constructor of the industry tiles scope resolver.
ScopeResolver *	GetScope (VarSpriteGroupScope scope=VSG_SCOPE_SELF, uint8_t relative=0) override
	Get a resolver for the scope.
GrfSpecFeature	GetFeature () const override
	Get the feature number being resolved for.
uint32_t	GetDebugID () const override
	Get an identifier for the item being resolved.
Public Member Functions inherited from SpecializedResolverObject< IndustryRandomTriggers >
	ResolverObject (const GRFFile *grffile, CallbackID callback=CBID_NO_CALLBACK, uint32_t callback_param1=0, uint32_t callback_param2=0)
	Resolver constructor.
void	SetWaitingRandomTriggers (IndustryRandomTriggers triggers)
	Set waiting triggers for rerandomisation.
IndustryRandomTriggers	GetUsedRandomTriggers () const
	Get the triggers, which were "consumed" by some rerandomisation.
Public Member Functions inherited from ResolverObject
	ResolverObject (const GRFFile *grffile, CallbackID callback=CBID_NO_CALLBACK, uint32_t callback_param1=0, uint32_t callback_param2=0)
	Resolver constructor.
ResolverResult	DoResolve ()
int32_t	GetRegister (uint i) const
	Gets the value of a so-called newgrf "register".
void	SetRegister (uint i, int32_t value)
	Sets the value of a so-called newgrf "register".
template<class TSpriteGroup>
const TSpriteGroup *	Resolve ()
	Resolve SpriteGroup.
void	ResolveRerandomisation ()
	Resolve bits to be rerandomised.
CallbackResult	ResolveCallback (std::span< int32_t > regs100)
	Resolve callback.
virtual const SpriteGroup *	ResolveReal (const RealSpriteGroup &group) const
	Get the real sprites of the grf.
uint32_t	GetWaitingRandomTriggers () const
	Used by RandomizedSpriteGroup: Triggers for rerandomisation.
void	AddUsedRandomTriggers (uint32_t triggers)
	Used by RandomizedSpriteGroup: Consume triggers.
uint32_t	GetReseedSum () const
	Returns the OR-sum of all bits that need reseeding independent of the scope they were accessed with.

Data Fields
IndustryTileScopeResolver	indtile_scope
	Scope resolver for the industry tile.
IndustriesScopeResolver	ind_scope
	Scope resolver for the industry owning the tile.
IndustryGfx	gfx
Data Fields inherited from ResolverObject
ScopeResolver	default_scope
	Default implementation of the grf scope.
CallbackID	callback {}
	Callback being resolved.
uint32_t	callback_param1 = 0
	First parameter (var 10) of the callback.
uint32_t	callback_param2 = 0
	Second parameter (var 18) of the callback.
uint32_t	last_value = 0
	Result of most recent DeterministicSpriteGroup (including procedure calls).
std::array< uint32_t, VSG_END >	reseed
	Collects bits to rerandomise while triggering triggers.
const GRFFile *	grffile = nullptr
	GRFFile the resolved SpriteGroup belongs to.
const SpriteGroup *	root_spritegroup = nullptr
	Root SpriteGroup to use for resolving.

Additional Inherited Members
Protected Attributes inherited from ResolverObject
uint32_t	waiting_random_triggers = 0
	Waiting triggers to be used by any rerandomisation. (scope independent).
uint32_t	used_random_triggers = 0
	Subset of cur_triggers, which actually triggered some rerandomisation. (scope independent).

Detailed Description

Resolver for industry tiles.

Definition at line 38 of file newgrf_industrytiles.h.

Constructor & Destructor Documentation

◆ IndustryTileResolverObject()

IndustryTileResolverObject::IndustryTileResolverObject	(	IndustryGfx	gfx,
		TileIndex	tile,
		Industry *	indus,
		CallbackID	callback = CBID_NO_CALLBACK,
		uint32_t	callback_param1 = 0,
		uint32_t	callback_param2 = 0 )

Constructor of the industry tiles scope resolver.

Parameters

gfx	Graphics of the industry.
tile	Tile of the industry.
indus	Industry owning the tile.
callback	Callback ID.
callback_param1	First parameter (var 10) of the callback.
callback_param2	Second parameter (var 18) of the callback.

Definition at line 141 of file newgrf_industrytiles.cpp.

References ResolverObject::callback, ResolverObject::callback_param1, ResolverObject::callback_param2, GetIndTileGrffile(), GetIndustryTileSpec(), StandardGRFFileProps::GetSpriteGroup(), IndustryTileSpec::grf_prop, ind_scope, indtile_scope, and ResolverObject::root_spritegroup.

Member Function Documentation

◆ GetDebugID()

uint32_t IndustryTileResolverObject::GetDebugID ( ) const

overridevirtual

Get an identifier for the item being resolved.

This function is mainly intended for the callback profiling feature, and should return an identifier recognisable by the NewGRF developer.

Reimplemented from ResolverObject.

Definition at line 156 of file newgrf_industrytiles.cpp.

References GetIndustryTileSpec(), IndustryTileSpec::grf_prop, and GRFFilePropsBase::local_id.

◆ GetFeature()

GrfSpecFeature IndustryTileResolverObject::GetFeature ( ) const

overridevirtual

Get the feature number being resolved for.

This function is mainly intended for the callback profiling feature.

Reimplemented from ResolverObject.

Definition at line 151 of file newgrf_industrytiles.cpp.

◆ GetScope()

ScopeResolver * IndustryTileResolverObject::GetScope	(	VarSpriteGroupScope	scope = VSG_SCOPE_SELF,
		uint8_t	relative = 0 )

inlineoverridevirtual

Get a resolver for the scope.

Parameters

scope	The scope to resolve.
relative	The relative in case of a VSG_SCOPE_RELATIVE.

Returns: The resolver for the requested scope.

Reimplemented from ResolverObject.

Definition at line 46 of file newgrf_industrytiles.h.

References ResolverObject::GetScope(), ind_scope, indtile_scope, VSG_SCOPE_PARENT, and VSG_SCOPE_SELF.

Referenced by NIHIndustryTile::Resolve().

Field Documentation

◆ gfx

IndustryGfx IndustryTileResolverObject::gfx

Definition at line 41 of file newgrf_industrytiles.h.

◆ ind_scope

IndustriesScopeResolver IndustryTileResolverObject::ind_scope

Scope resolver for the industry owning the tile.

Definition at line 40 of file newgrf_industrytiles.h.

Referenced by GetScope(), and IndustryTileResolverObject().

◆ indtile_scope

IndustryTileScopeResolver IndustryTileResolverObject::indtile_scope

Scope resolver for the industry tile.

Definition at line 39 of file newgrf_industrytiles.h.

Referenced by GetScope(), and IndustryTileResolverObject().

The documentation for this struct was generated from the following files:

src/newgrf_industrytiles.h
src/newgrf_industrytiles.cpp
