Resolver for a vehicle (chain). More...

#include <newgrf_engine.h>

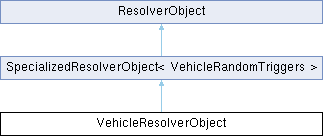

Inheritance diagram for VehicleResolverObject:

Public Types
enum	WagonOverride : uint8_t { WO_NONE , WO_UNCACHED , WO_CACHED , WO_SELF }
	Application of 'wagon overrides'. More...

Public Member Functions
	VehicleResolverObject (EngineID engine_type, const Vehicle *v, WagonOverride wagon_override, bool rotor_in_gui=false, CallbackID callback=CBID_NO_CALLBACK, uint32_t callback_param1=0, uint32_t callback_param2=0)
	Resolver of a vehicle (chain).
ScopeResolver *	GetScope (VarSpriteGroupScope scope=VSG_SCOPE_SELF, uint8_t relative=0) override
	Get a resolver for the scope.
const SpriteGroup *	ResolveReal (const RealSpriteGroup &group) const override
	Get the real sprites of the grf.
GrfSpecFeature	GetFeature () const override
	Get the feature number being resolved for.
uint32_t	GetDebugID () const override
	Get an identifier for the item being resolved.
Public Member Functions inherited from SpecializedResolverObject< VehicleRandomTriggers >
	ResolverObject (const GRFFile *grffile, CallbackID callback=CBID_NO_CALLBACK, uint32_t callback_param1=0, uint32_t callback_param2=0)
	Resolver constructor.
void	SetWaitingRandomTriggers (VehicleRandomTriggers triggers)
	Set waiting triggers for rerandomisation.
VehicleRandomTriggers	GetUsedRandomTriggers () const
	Get the triggers, which were "consumed" by some rerandomisation.
Public Member Functions inherited from ResolverObject
	ResolverObject (const GRFFile *grffile, CallbackID callback=CBID_NO_CALLBACK, uint32_t callback_param1=0, uint32_t callback_param2=0)
	Resolver constructor.
ResolverResult	DoResolve ()
int32_t	GetRegister (uint i) const
	Gets the value of a so-called newgrf "register".
void	SetRegister (uint i, int32_t value)
	Sets the value of a so-called newgrf "register".
template<class TSpriteGroup>
const TSpriteGroup *	Resolve ()
	Resolve SpriteGroup.
void	ResolveRerandomisation ()
	Resolve bits to be rerandomised.
CallbackResult	ResolveCallback (std::span< int32_t > regs100)
	Resolve callback.
uint32_t	GetWaitingRandomTriggers () const
	Used by RandomizedSpriteGroup: Triggers for rerandomisation.
void	AddUsedRandomTriggers (uint32_t triggers)
	Used by RandomizedSpriteGroup: Consume triggers.
uint32_t	GetReseedSum () const
	Returns the OR-sum of all bits that need reseeding independent of the scope they were accessed with.

Data Fields
VehicleScopeResolver	self_scope
	Scope resolver for the indicated vehicle.
VehicleScopeResolver	parent_scope
	Scope resolver for its parent vehicle.
VehicleScopeResolver	relative_scope
	Scope resolver for an other vehicle in the chain.
uint8_t	cached_relative_count
	Relative position of the other vehicle.
Data Fields inherited from ResolverObject
ScopeResolver	default_scope
	Default implementation of the grf scope.
CallbackID	callback {}
	Callback being resolved.
uint32_t	callback_param1 = 0
	First parameter (var 10) of the callback.
uint32_t	callback_param2 = 0
	Second parameter (var 18) of the callback.
uint32_t	last_value = 0
	Result of most recent DeterministicSpriteGroup (including procedure calls).
std::array< uint32_t, VSG_END >	reseed
	Collects bits to rerandomise while triggering triggers.
const GRFFile *	grffile = nullptr
	GRFFile the resolved SpriteGroup belongs to.
const SpriteGroup *	root_spritegroup = nullptr
	Root SpriteGroup to use for resolving.

Additional Inherited Members
Protected Attributes inherited from ResolverObject
uint32_t	waiting_random_triggers = 0
	Waiting triggers to be used by any rerandomisation. (scope independent).
uint32_t	used_random_triggers = 0
	Subset of cur_triggers, which actually triggered some rerandomisation. (scope independent).

Detailed Description

Resolver for a vehicle (chain).

Definition at line 47 of file newgrf_engine.h.

Member Enumeration Documentation

◆ WagonOverride

enum VehicleResolverObject::WagonOverride : uint8_t

Application of 'wagon overrides'.

Enumerator
WO_NONE	Resolve no wagon overrides.
WO_UNCACHED	Resolve wagon overrides.
WO_CACHED	Resolve wagon overrides using TrainCache::cached_override.
WO_SELF	Resolve self-override (helicopter rotors and such).

Definition at line 49 of file newgrf_engine.h.

Constructor & Destructor Documentation

◆ VehicleResolverObject()

VehicleResolverObject::VehicleResolverObject	(	EngineID	engine_type,
		const Vehicle *	v,
		WagonOverride	wagon_override,
		bool	rotor_in_gui = false,
		CallbackID	callback = CBID_NO_CALLBACK,
		uint32_t	callback_param1 = 0,
		uint32_t	callback_param2 = 0 )

Resolver of a vehicle (chain).

Parameters

engine_type	Engine type
v	Vehicle being resolved.
wagon_override	Application of wagon overrides.
rotor_in_gui	Helicopter rotor is drawn in GUI.
callback	Callback ID.
callback_param1	First parameter (var 10) of the callback.
callback_param2	Second parameter (var 18) of the callback.

Definition at line 1073 of file newgrf_engine.cpp.

References cached_relative_count, ResolverObject::callback, ResolverObject::callback_param1, ResolverObject::callback_param2, Vehicle::cargo_type, Vehicle::engine_type, GroundVehicleCache::first_engine, SpecializedVehicle< Train, Type >::From(), GetEngineGrfFile(), VariableGRFFileProps< Tkey >::GetFirstSpriteGroupOf(), Vehicle::GetGroundVehicleCache(), Engine::grf_prop, Vehicle::IsGroundVehicle(), parent_scope, relative_scope, ResolverObject::root_spritegroup, self_scope, CargoGRFFileProps::SG_DEFAULT, CargoGRFFileProps::SG_PURCHASE, BaseVehicle::type, VEH_TRAIN, WO_CACHED, WO_NONE, and WO_SELF.

Member Function Documentation

◆ GetDebugID()

uint32_t VehicleResolverObject::GetDebugID ( ) const

overridevirtual

Get an identifier for the item being resolved.

This function is mainly intended for the callback profiling feature, and should return an identifier recognisable by the NewGRF developer.

Reimplemented from ResolverObject.

Definition at line 1047 of file newgrf_engine.cpp.

References self_scope.

◆ GetFeature()

GrfSpecFeature VehicleResolverObject::GetFeature ( ) const

overridevirtual

Get the feature number being resolved for.

This function is mainly intended for the callback profiling feature.

Reimplemented from ResolverObject.

Definition at line 1036 of file newgrf_engine.cpp.

References GSF_INVALID, self_scope, VEH_AIRCRAFT, VEH_ROAD, VEH_SHIP, and VEH_TRAIN.

◆ GetScope()

ScopeResolver * VehicleResolverObject::GetScope	(	VarSpriteGroupScope	scope = VSG_SCOPE_SELF,
		uint8_t	relative = 0 )

overridevirtual

Get a resolver for the scope.

Parameters

scope	The scope to resolve.
relative	The relative in case of a VSG_SCOPE_RELATIVE.

Returns: The resolver for the requested scope.

Reimplemented from ResolverObject.

Definition at line 318 of file newgrf_engine.cpp.

References Vehicle::engine_type, Vehicle::First(), GB(), ResolverObject::GetRegister(), ResolverObject::GetScope(), Vehicle::Move(), Vehicle::Next(), parent_scope, relative_scope, self_scope, VSG_SCOPE_PARENT, VSG_SCOPE_RELATIVE, and VSG_SCOPE_SELF.

Referenced by FillNewGRFVehicleCache(), and NIHVehicle::Resolve().

◆ ResolveReal()

const SpriteGroup * VehicleResolverObject::ResolveReal ( const RealSpriteGroup & group ) const

overridevirtual

Get the real sprites of the grf.

Parameters

group Group to get.

Returns: The available sprite group.

Reimplemented from ResolverObject.

Definition at line 1012 of file newgrf_engine.cpp.

References Vehicle::cargo, Vehicle::cargo_cap, Vehicle::current_order, Vehicle::First(), Order::GetLoadType(), Order::GetUnloadType(), Order::IsType(), RealSpriteGroup::loaded, RealSpriteGroup::loading, NoLoad, NoUnload, self_scope, and VehicleCargoList::StoredCount().

Field Documentation

◆ cached_relative_count

uint8_t VehicleResolverObject::cached_relative_count

Relative position of the other vehicle.

Definition at line 60 of file newgrf_engine.h.

Referenced by VehicleResolverObject().

◆ parent_scope

VehicleScopeResolver VehicleResolverObject::parent_scope

Scope resolver for its parent vehicle.

Definition at line 57 of file newgrf_engine.h.

Referenced by GetScope(), and VehicleResolverObject().

◆ relative_scope

VehicleScopeResolver VehicleResolverObject::relative_scope

Scope resolver for an other vehicle in the chain.

Definition at line 59 of file newgrf_engine.h.

Referenced by GetScope(), and VehicleResolverObject().

◆ self_scope

VehicleScopeResolver VehicleResolverObject::self_scope

Scope resolver for the indicated vehicle.

Definition at line 56 of file newgrf_engine.h.

Referenced by GetDebugID(), GetFeature(), GetScope(), ResolveReal(), and VehicleResolverObject().

The documentation for this struct was generated from the following files:

src/newgrf_engine.h
src/newgrf_engine.cpp
